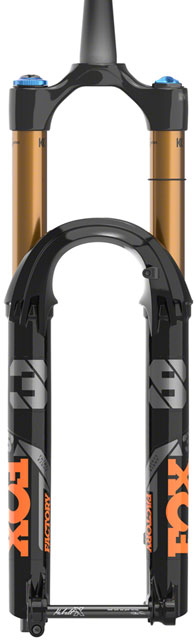

FOX 38 Factory Series Suspension Fork is the long-travel enduro specialist. It redefines what you think a long travel single crown fork is capable of, and sets a new benchmark for confidence, performance, and durability.
Product Details:
- 27.5: 723mm peak tire diameter
- 29: 762mm peak tire diameter
- Direct mud guard mount
- FLOAT EVOL air spring technology increases negative air spring volume, optimizing small bump sensitivity
- Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel, notably improving sensitivity and overall ride quality
- Genuine Kashima Coating on upper tubes
- GRIP2 damper includes Fox's patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance
- Lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button
- Lower leg bypass channels alleviates air pressure by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping
- The 38 Fork comes equipped with a quick-release lever operated patent-pending floating axle system, combining the benefit of a floating axle with the ease of a tool-free quick-release
- The 38's lower leg arch design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding
- The floating axle offers a distinct performance advantage due to its unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs
Specifications:
- Axle to Crown Length: 565.7
- Brake Type: Post Mount 180
- Color: Shiny Black
- Crown Race: 40
- Defined Color: Black
- External Adjustments: High Speed Compression Damping
- External Adjustments: Low Speed Compression Damping
- External Adjustments: Rebound Damping
- Front Axle: 15mm Thru x 110mm
- Lockout Switch: None
- Maximum Tire Width: 72
- Negative Spring: Air
- Offset: 44
- Positive Spring: Air
- S.H.I.S. Stem Clamp Diameter: 28.6
- Stanchion Diameter: 38
- Steerer Tube Length (mm): 264
- Steerer Type: Tapered
- Travel (mm): 170
- Wheel Size: 27.5"
- UPC: 821973436722
- MPN: 910-21-106
